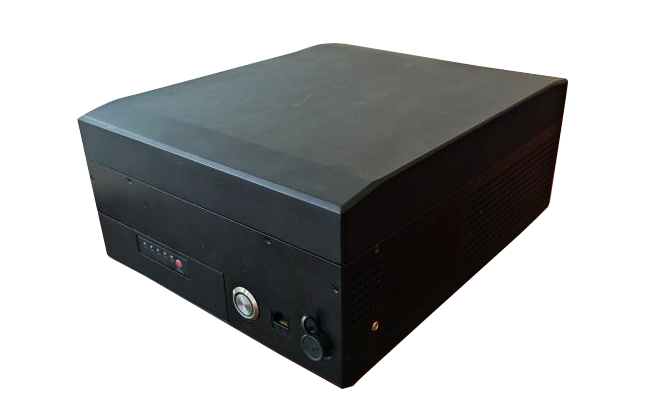

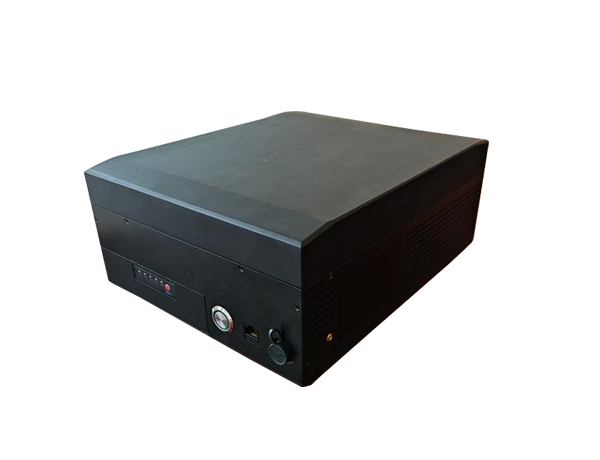

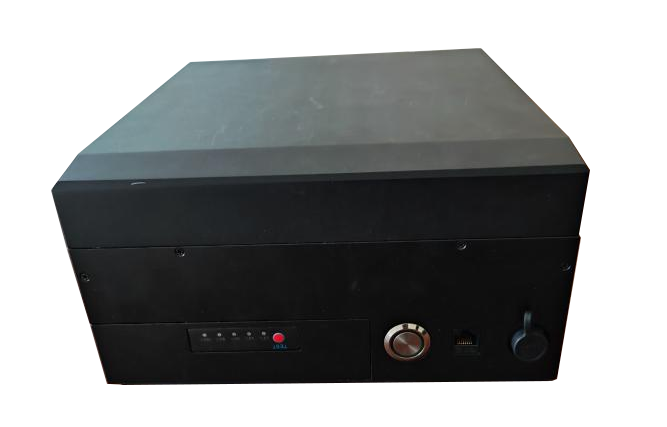

This 4G/5G IMSI tracking system enables real-time detection and sub-0.2m precision positioning.It supports multi-carrier output(4G:4W,5G:8W)and smart frequency switching.
Features include rapid IMSI acquisition,blacklist/whitelist management,and multi-target tracking.Supports 30 frequency points and real-time signal sorting for efficiency.Ideal for law enforcement,military,and rescue operations,ensuring fast deployment and accurate tracking.
Collects IMSI from mobile terminals on 4G and 5G networks and provides precise positioning with≤0.2m accuracy.
Supports four simultaneous carriers:two for 4G(4W per carrier)and two for 5G(8W per carrier),with adjustable power levels.
4G supports B1,B3,B5,B8,B34,B38,B39,B40,B41;5G supports N1,N3,N5,N8,N28,N41,N78,N79.
Each carrier supports multi-frequency polling and millisecond-level switching.
Captures IMSI from China Mobile,China Broadcast,China Telecom,and China Unicom users.
Independent network scanning module enables rapid 4G/5G scanning and smart configuration based on neighboring cells and SIB messages.
Features automatic frame offset configuration,dynamic air interface synchronization,frequency correction,and synchronization holding to ensure stable and reliable operation with minimal impact on non-target devices.
Supports carrier splitting,allowing≥2 cell deployments per carrier.
Allows PCI modification within seconds without interrupting positioning,enabling quick target cell deployment.
Simple APP operation—enter a blacklist IMSI,and the system runs automatically.
Supports blacklist/whitelist management,with over 50,000 whitelist entries.
Displays real-time mobile signal strength and automatically sorts targets by signal level.
Multi-frequency operation—supports 30 simultaneous frequency points without the need for manual adjustments.
Tracks multiple targets across four different carriers simultaneously.
