SMA-A10 Portable X-Ray Inspection System

The SMA-A10 Portable X-Ray Inspection System is an ultra-thin, lightweight, and high - definition X - ray imaging system. It is designed and developed by our company specifically to meet the requirements of security inspection, bomb disposal, etc. It can be used by police officers at security inspection, bomb disposal, investigation and other scenes to conduct perspective observations on suspicious objects, and eliminate dangerous and harmful items, which improves the work efficiency of law enforcement officers and reduces their risk factors.
Whatsapp:+86 13534182658

Product Overview

The SMA-A10 Portable X-Ray Inspection System is an ultra-thin, lightweight, and high - definition X - ray imaging system. It is designed and developed by our company specifically to meet the requirements of security inspection, bomb disposal, etc. It can be used by police officers at security inspection, bomb disposal, investigation and other scenes to conduct perspective observations on suspicious objects (such as firearms, drugs, daggers, etc.), and eliminate dangerous and harmful items (such as explosives, explosive timing devices, firearms and other controlled devices), which improves the work efficiency of law enforcement officers and reduces their risk factors. It can also be used in technical investigation, customs, postal services, and logistics security inspections.


Features

v  High Resolution and Clear Images

The detection area of the detector is 430350mm, with a resolution of up to 25603072 and a spatial resolution of 4 line pairs/mm. Any trace of suspicious objects can be clearly identified. The optimized photodiode design, flat - panel processing technology, and high - sensitivity fluorescent materials enable the device to have a gray scale of 16 bits, which can easily distinguish low - density objects. Drugs, explosives, cigarettes, animals, plants, etc. cannot hide.



v  Lightweight and Portable

The detector size is 380x460x15mm, with a thickness of only 15mm and a weight of 3.2kg. It is convenient to carry and suitable for mobile security inspection and bomb disposal. The device can be carried by a single person, improving the mobility of security inspection and bomb disposal personnel.



v  Strong Battery Life and Wireless Control Support

The internal battery of the detector has a capacity sufficient for more than 2 hours (nearly 1200 images) of continuous shooting and more than 10 hours of standby time, and it can be connected to an external power supply. The device supports wireless control.



v  3D Detection Function

It can take 3D stereo images, and the front - to - back positions of various objects in the image can be seen from the image, which is convenient for bomb disposal work.



v  Dual - Energy Detection Function

It can take dual - energy images. Through the images, organic and inorganic substances can be distinguished, which is convenient for security inspection and drug detection work.

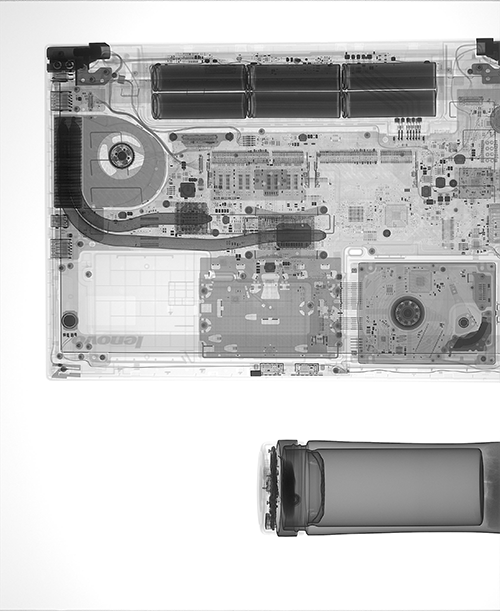

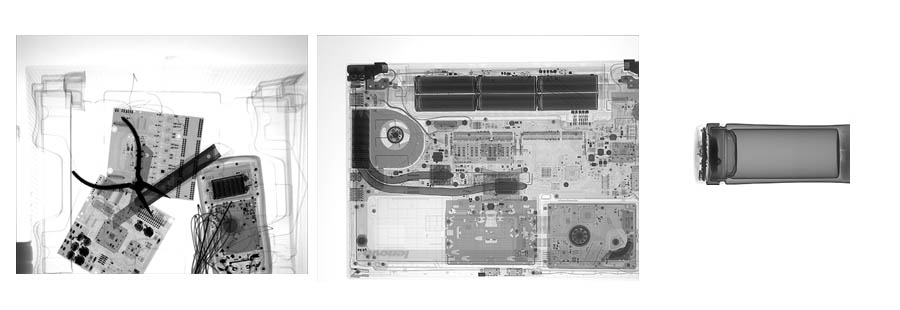

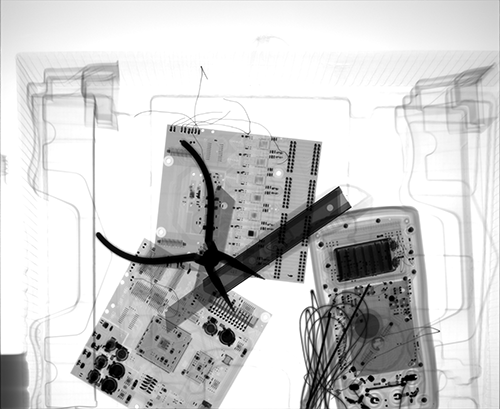

Product Pictures



Equipment Parameters

v  Detector Parameters

Ø  Flat - panel detector

Ø  Imaging area: 430 x 350 mm

Ø  Pixel array: 2560 x 3072

Ø  Spatial resolution: 4 line pairs/mm

Ø  Gray scale: 16 bits

Ø  Control method: Wired or wireless optional

Ø  Detector size: 380x460x15mm

Ø  Weight: 3.2Kg

Ø  Battery life: The built - in lithium - ion battery is sufficient for 1200 images of shooting and more than 10 hours of standby time



v  X - ray Machine

Ø  Constant - current X - ray machine

Ø  Tube voltage: 120KV (80kv, 160kv are optional)

Ø  Tube current: 1mA

Ø  X - ray penetration ability: It can penetrate a 43mm steel plate

Ø  The tube current and output voltage of the X - ray machine can be adjusted in real - time in the software

Ø  There are indicator lights and warning sounds when the X - ray is emitted

Ø  It uses a lithium - ion battery as the power source, with a battery status indicator. The battery has a screen that can display voltage, power, temperature, etc.

Ø  The X - ray machine is equipped with a key switch and a secondary power start switch

Ø  It adopts oil - cooling for heat dissipation and can work continuously for a long time. It can continuously shoot more than 20 images within 1 minute without overheating

Ø  Weight: 8kg

Ø  X - ray source size: 410mmx210mmx150mm

Ø  Control method: Wired or wireless optional



v  Software and Laptop

Ø  Full - Chinese software;

Ø  It has a variety of image processing functions such as super enhancement, edge enhancement, uniform light correction, window width and window level magic pen, image inversion, pseudo - color, and suspicious object marking;

Ø  It can collect X - ray images of the inspected object with one click;

Ø  It has a linear distance measurement function;

Ø  It has a 3D stereo imaging function and can roughly distinguish the front - to - back relationship of the inspected objects through the image

Ø  It has a dual -energy detection function and can distinguish organic and inorganic substances.

Ø  Full - screen touch - operated laptop. Image processing adjustments such as zooming in, zooming out, gray scale, and brightness can be achieved by pinching and spreading fingers.
