Ⅰ.Brief Introduction

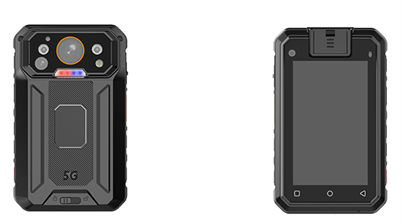

The SMA-ZF01-5G,is a high-definition 5G law enforcement recorder.It integrates multiple functions such as high-definition audio and video recording,real-time transmission,and remote monitoring,providing law enforcement personnel with comprehensive,accurate,and reliable on-site recording tools.Equipped with high-performance cameras and microphones,this product ensures that clear and authentic audio and video materials can be captured even in complex and ever-changing law enforcement environments.Additionally,it boasts powerful data storage and processing capabilities,supporting long periods of continuous recording and automatic data upload to the cloud for convenient subsequent viewing and management.
Furthermore,this law enforcement recorder excels in durability and portability.Its sturdy and durable outer shell material can withstand the erosion of various harsh environments,ensuring stable operation in complex scenarios.At the same time,its compact size and lightweight design make it easy for law enforcement personnel to carry around and record the law enforcement process at any time.
Ⅱ.Specifications
Hardware | Overall dimensions | 99*60*22（Motherboard size：90.5*52） |
Hardware Platform | MT6877: 8-core, 2.4GHz main frequency |
Network type/frequency band | Domestic: China Mobile, China Unicom, China Telecom, Broadcasting and Television
GSM：2/3/5/8
WCDMA：1/2/5/8
TDD：34/38/39/40/41
FDD：1/2/3/4/5/7/8/28AB
CDMA：BC0
5G:N1/N3/N41/N77/N78/N79/N28AB(含广电700M) |
Memory | Standard 4GB+64GB, optional 6+128, 6+256 |

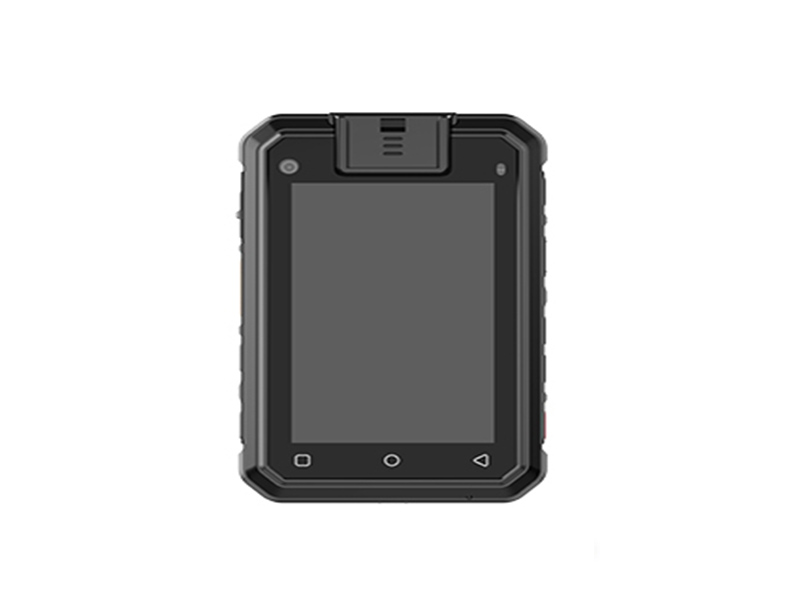

Display screen | 3.1inch，480*800 |
Touch screen | Multi touch |
Front camera | 2 million pixels，720P，Sensor:GC02M2 |

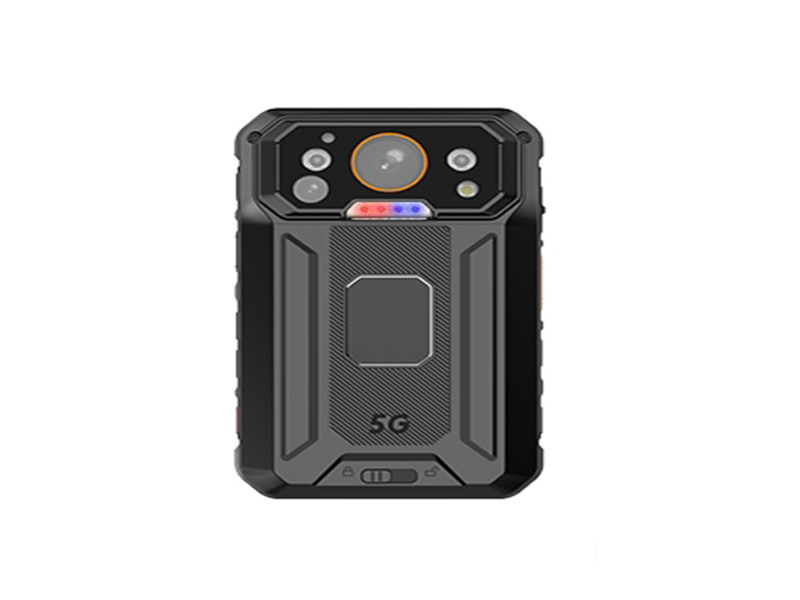

Rear three cameras | The highest resolution of the main camera:3840*2160，Sensor:SC8238\IMX476,Compatible with anti shake technology、Infrared module
Night vision camera：SC230AI(2 million pixels，Infrared enhancement）
Camera for photography：IMX214（13 million pixels，Auto focus） |
Alarm lamp | Red and blue flashing alarm lights |
Flash lamp | 1 piece |
Signal indicator light | 1 tricolor light, 1 monochromatic indicator light |
Night vision | Automatic night vision switching, supporting 4 high-power red lights, meeting the requirement of seeing faces within 5 meters and contours of people within 10 meters at night, supporting automatic switching of infrared lights according to ambient light |
Positioning | Support GPS/Beidou/Glonass，Optional domestic positioning chip |
Bluetooth | Bluetooth5.1 |
NFC | Support,ST21NFC |
WIFI | Support IEEE802.11 ax/ac/a/b/g/n，2.4G/5G |
OTG | Support |
Speaker | 1326 speaker, rated power 2.5W |
Mic | Dual MIC |
Noise reduction | Support |
Vibration motor | Support |
Battery | 3800mAh |
Backuo Battery | 60mAh, high rate discharge, supports battery replacement without shutting down |
Interface | SIM card holder | Supports dual nanoSim cards |
USB card holder | Supports Tpye-C interface self waterproofing, USB 2.0 interface compatible with USB 3.0, supports fast charging 9V/2A |
TF card holder | Single TF card |

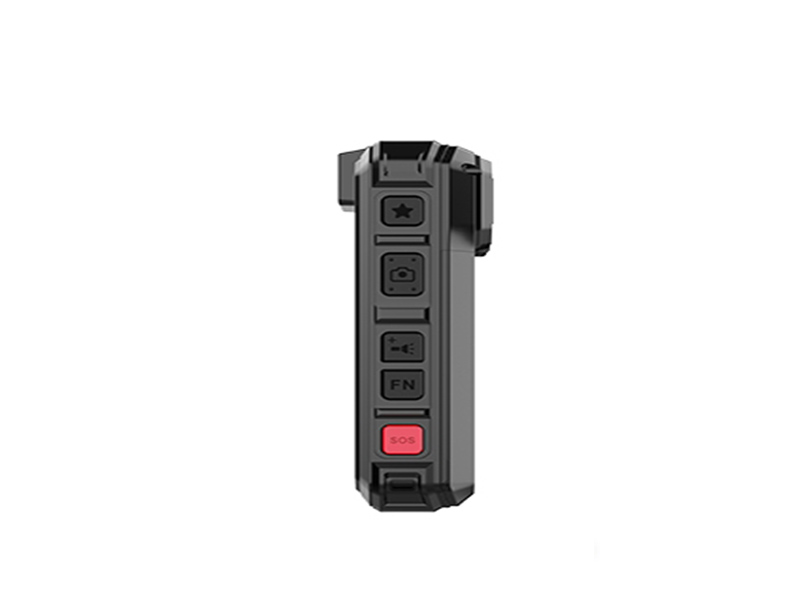

key | Power keys | Long press to turn on/off, short press to standby/wake up |
Video keys | Press once to start recording, press again to end recording |
Camera Keys | Press this button once to take a photo |
SOS Keys | SOS key |
PTT Keys | PTT key |
Record Keys | Press once to start recording, press again to end recording |
Volume | Volume+/Volume- |
Mark Keys | One click operation to highlight the files during the recording process |
Sensor | Accelerometer | Standard |
Geomagnetic sensor | compatible |
Gyroscope sensor | compatible |
Light distance sensor | compatible |
Environmental temperature and humidity sensor | Compatible, onboard support, sensors connected to motherboard via FPC |
Safety regulations | Working temperature | Working temperature ：-30℃~+55℃；Storage temperature：-40℃~+70℃ |
ESD static electricity | Contact±8KV，air±10KV |
Protection level | IP68，Falling 2 meters |
Charging time | Less than 3 hours; |
Working hours |
|
Software specifications |
System | operating system | Android 13 CPU 8-core 64 bit 2.4GHz; |
