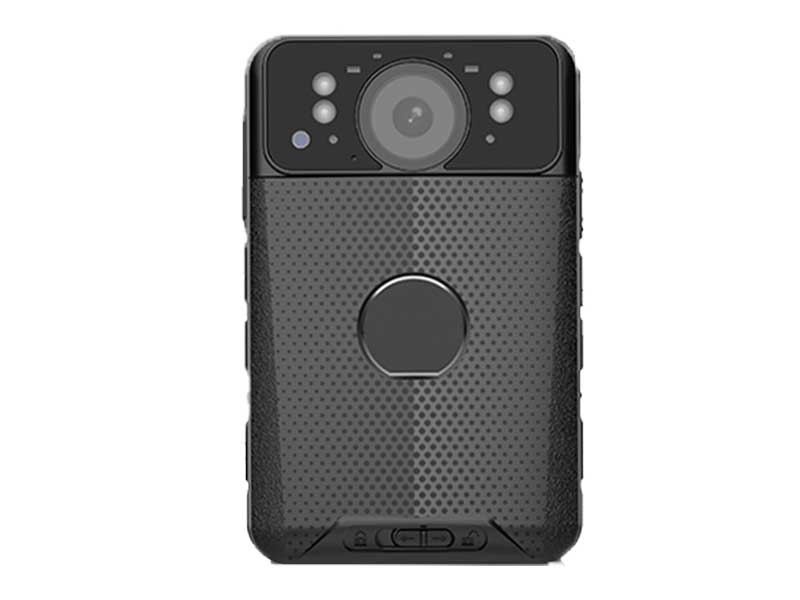

SMA-ZF01-4G Body Worn Camera

The 4G Body Camera combines advanced hardware and software, integrating push-to-talk functionality with control center solutions. Smile offers a wide range of body camera models, from traditional to 5G/LTE network-compatible, alongside a complete solution that includes evidence management software and additional modules. This system provides law enforcement, security, and other sectors with reliable, high-performance tools, ensuring optimal operational efficiency and real-time situational awareness in critical environments.
Whatsapp:WhatsApp :+86 13530849586

  Main Features

   Capturing Every Detail

  ● Support 1080P resolution for recording,up to 4K

  ● H.264 video compression

  ● Support 1080P continues working 12 hours

  ● Hot-swappable 3050mAh lithium battery

  ● 2.4 inch touch screen supported

  ● Support built-in WIFI for uploading

  ● Support built-in GPS for live tracking

  ● Built-in storage can extend to 512GB

  ● Support network PTT function

  ● Auto/manual night vision supported

  ● Optional AI facial recognition supported

  ● Small size with light weight

  ● Strong customization ability

  Structure dimension:92x60x30(mm)
  Specification

Product Spec

Model No.

YL-R3-4GL

Basic Configuration

System

Android 12.0

Cameras

Main camera: 4M

Secondary camera: optional

CPU

MTK platform, 4-core 64-bit, 2.0GHz

Memory

8G,16G,32G optional

Storage

128GB,256GB,512GB optional

Sensor

OV4689

Viewing angle

120° horizontal, 140° diagonal

Screen

2.4 inch color touch screen

Interface

Support Type-C USB2.0

4G Network band

TDD-LTE  Band 38/39/40/41

FDD-LTE  Band 1/2/3/4/5/7/8/20

GSM  850/900/1800/1900

WCDMA  Band 1/2/5/8

TD-SCDMA  Band 34/Band39

Protocol

Support   ONVIF, RTMP, RTSP, SFTP, WebRTC and other streaming media protocols and SIP   protocol.

Built-in WIFI

802.11 a/b/g/n/ac, also   support 2.4GHz & 5GHz

Satellite positioning

GPS/ GLONASS/ AGPS

Bluetooth

BT5.0, for wireless earphone

NFC

Optional

Compatibility

Support to install third-party app

Related   software

BWC Manager,   BWC Tool, Central Management Software

Language

English/Russian/Spanish/Portuguese/Arabic/Vietnamese/Thai

Startup logo

Support to customize startup logo

Video

Video recording resolution

4K,1080P@30fps, 720P@30fps,   480P@30fps

Live streaming resolution

1080P@30fps,   720P@30fps,   480P@30fps

Encoding format

H.264

Video format

MP4

Video clip

Auto, 1min,   3min, 5min, 10min, 20min, 30min optional

Pre-recording

Up to 60   seconds

Post-recording

OFF, 10s,   30s, 1min, 2min, 5min, 10min, 30min optional

Snapshot

Burst interval

2s, 3s,   5s, 10s, 20s, 30s optional

Picture format

JPG

Image pixel

Main Camera:   52M/36M/32M/27M/16M/12M/10M/8M/4M/2M

Second Camera: 13M/8M/5M/4M

Night Vision

Distance

Up to 10 meters

IR switch

Auto or manual

White light

Manual

Power

Battery capacity

3050mAh

Standby time

About 48 hours

Working time

1080P continues working 12 hours

720P continues working 13 hours

Charging time

Less than 3   hours

Structure

Weight

160g (clip is not included)

Dimension

92x60x30 (mm)

Drop resistance

2 meters

IP rating

IP67

Working temperature

-10 ~ 55℃

Buttons

Power on/off   button, Video recording button, Audio recording button, Snapshot button, PTT   button, SOS button, Important mark button, Multi-function button

Light

Indicator light

Video recording: red light is flashing

Audio recording: yellow light is flashing

Standby: green light is always on

Live streaming: blue light is flashing

Quality

Certification

CE, FCC, UN38.3

Package

Packing list

1x R3S Body camera; 1x Charger; 1x USB-C cable; 1x Clip

Box dimension

185x135x55 (mm)

Single box weight

About 450g

Carton dimension

390x290x160 (mm)

Single carton weight

About 5000g (10pcs)
