Product Overview

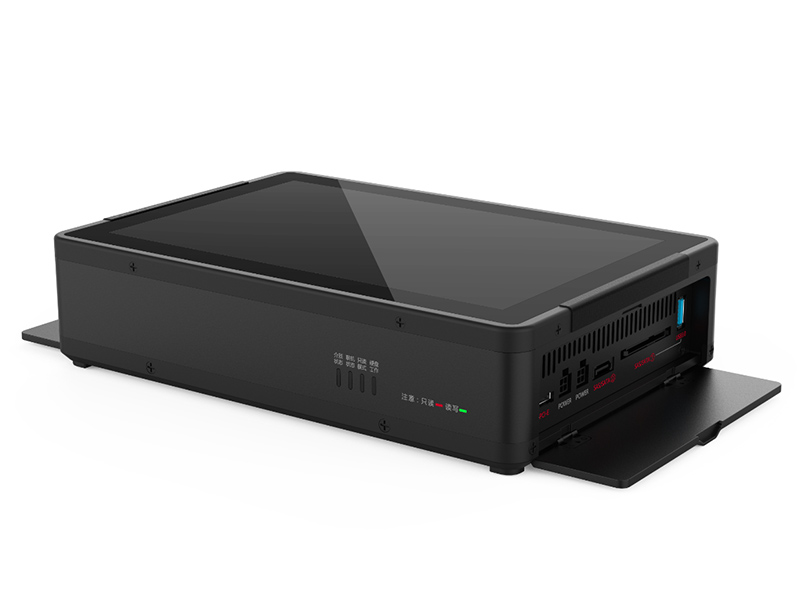

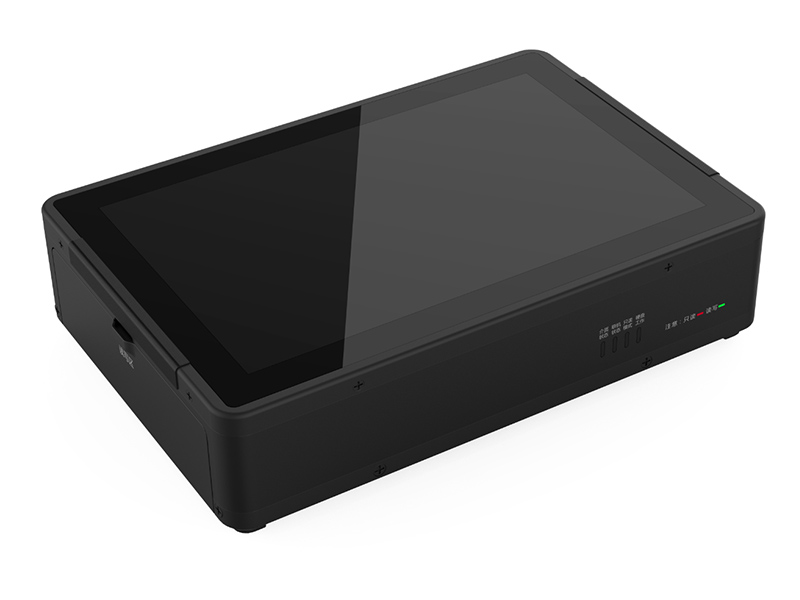

　　SMA-PR02 High-speed Hard Drive Duplication Device is a high-tech forensic professional product with rich interface and excellent performance. It is a user-friendly, easy-to-operate, feature-rich, highly integrated and scalable specialized equipment that can meet various professional needs in actual case applications.

　　Product features

　　1. Equipped with various data write protection ports with excellent performance and a complete range in the industry:integrated with read-only port: PCI-E*1, SAS3.0/SATA 3.0*2, and USB 3.0*1

　　2. Integrate with write port PCI-E*1; SAS3.0/SATA 3.0*2, detachable built-in SATA3.0*1, and USB 3.0*1.

　　3. Support non removable read-only connections for Apple computers in Target disk mode, and implement disk cloning and mirroring operations.

　　4. The maximum end-to-end data transmission speed for a single task is 40GB/MIN.(M.2-M.2)

　　5. Support E01 compression and SHA1 hash hardware acceleration.

　　6. Single task E01+SHA1 maximum mirror task speed 40GB/MIN.

　　7. Supports breakpoint copying and has three working modes:

　　   ①Local mode

　　   ②Online mode (USB3.0 Device)

　　8. Embedded media cloning and copying, mirroring, data shredding, hash verification and other functional modules, supporting three sets of parallel tasks.

　　9. Support built-in WIN TO GO boot system for non disassembly forensic verification.

　　10. Provide interfaces to support embedding third-party LINUX platform based applications.

　　11. Support network storage connection in read-only/read-write mode.

　　12. Optional SSD docking module that supports PCI-E protocol, M.2 interface, and PCIE interface.

　　13. 10 inch high-definition touch LCD screen.

　　14.Size: 260*177*57mm (length*width*height)

　　Product Function Mode

　　View hard disk information: hard disk location, information, HPA/DCO settings, whether locked, SMART information

　　Hard disk erase and format erase mode: one-time, custom, secure, DoD format options -- Ext4,NTFS,exFAT

　　Hidden partition: support recognition and restoration of HPA/DCO hidden partitions

　　Hard disk cloning: support multi-threaded parallel jobs and synchronous verification -- SHA1, SHA256, MD5

　　Hard disk image: support formats such as DD, E01, Ex01, etc.

　　Supports multi-threaded parallel jobs with optional synchronization verification: SHA1, SHA256, MD5

　　Breakpoint continuation copy: supported (E01 only supports segmented mode)

　　Calculate hard disk hash: SHA1, SHA256, MD5

　　Hardware acceleration: E01+SHA1

　　ISCSI mounting: Remote iscsi devices can be mounted as read-only or read-write storage through an integrated gigabit RJ45 network port

　　CIFS mounting: CIFS shares can be mounted as source or target volumes through an integrated gigabit RJ45 network port

　　Log: Each task has a log file that can be browsed and downloaded

　　Task management: Tasks can be paused or terminated

　　Hard disk online: Connect to the host through the USB3.0 online interface, and assign the hard disk of any port to the host for access

　　Cache function: Embedded with third-party, supporting built-in WIN TO GO boot system

　　Note

　　This device supports the read-only certificate collection function for Apple computers in Target disk mode, and a dedicated cable needs to be selected based on the interface (TYPE-C, Thunderbolt3) provided by the Apple computer.
