1.Product Overview:

　　The SMA-LR is a professional device designed for mainstream storage media in the market to recover data without physical damage.It supports detection of storage media such as USB drives,digital cards,hard drives,mechanical hard drives,mirrored files,TF cards,disk arrays,etc.It easily handles logical level data recovery such as file recovery,image recovery,video recovery,and partition recovery.This product is widely used in professional data recovery work for public security,procuratorial and judicial organs,enterprises and institutions,research institutes,evidence collection institutions,data recovery companies,etc.

　　2.Product features:

　　1.Support safe and fast recovery of data lost on hard drives,portable hard drives,USB drives,memory cards,RAID,virtual disks due to accidental deletion,formatting,partition damage,partition loss,virus damage,system crashes,and other unknown reasons.

　　2.Use intelligent search algorithms to perform deep scans on the disk and identify lost data;Regardless of the reason for data loss,as long as it is not completely overwritten and there is still residual file information,it can be found and restored normally.

　　3.Support virtual reassembly of RAID disk arrays,and after reassembly,file recovery and partition recovery can be performed like operating regular disks.Support building read-only virtual RAID to prevent accidental operation from damaging the original disk and data.

　　4.It supports direct loading of virtual disk files and can perform data recovery like operating a regular disk.Support the recovery of virtual disk files for virtual machines such as VMware,Hyper-V,Parallels,and Virtual Box.

　　5.Support turning the USB drive into a WinPE startup drive for starting the computer and responding to emergency situations in a timely manner.For example,in the event of a system crash or inability to start,the startup drive can be used to backup or recover data,which is safe and convenient.

　　6.It integrates powerful hexadecimal text editing and disk editing functions,such as sector positioning,sector copying,sector filling,data interpretation,and editing of any sector,helping professionals analyze underlying data and recover data.

　　7.Support file recovery,partition recovery,partition management,and data backup for various file system types such as NTFS,FAT32,FAT16,FAT12,exFAT,ReFS,EXT4,EXT3,and EXT2.

　　8.Support exporting the file directory tree within a specified partition as an independent,browsable HTML file,allowing you to view the file directory structure of the partition without accessing it.

　　9.Support recovery of lost partitions.

　　10.Support decryption of BitLocker encrypted partitions,even if the version of Windows system does not support BitLocker encrypted partitions,it can still be decrypted.

　　11.Support the recovery of VMware virtual machine disk files(.vmdk),Virtual PC virtual machine disk files(.vhd),Hyper-V virtual machine disk files(.vhdx),VirtualBox virtual machine disk files(.vdi),and Parallel virtual machine disk files(.hdd).

　　12.Support converting virtual disk file formats.

　　13.Support viewing hard drives S M.A.R.T.information.

　　14.Support data recovery for common flash cards such as 3.5-inch,2.5-inch IDE,SATA,SAS interface hard drives,USB drives,SD drives,TF,CF,etc.

　　15.Support DD,E01,AFF,BIN,IMG,VHD,VHDX,VMDK virtual machine files,and data recovery after array restructuring.

　　16.Support data recovery for file systems such as FAT12,FAT16,FAT32,exFAT,NTFS,EXT2,EXT3,EXT4,HFS,HFS+,HFSX,XFS,JFS,CDFS,UDF,F2FS,YAFFS,YAFFS2,etc.

　　17.Support lost partition scanning,customizable scanning area size,file system type;

　　18.Supports two scanning methods:simple scanning and detailed scanning.It can view the sector position scanned to the disk in real time.Simple scanning supports data recovery after deleting files and folders,while detailed scanning supports data recovery after deleting and formatting partitions

　　19.Support scanning result data size and quantity statistics,display scanning results according to the real directory structure,file category,and modification time,view scanning results according to lists and thumbnails,and preview image and document data

　　20.Support filtering of scan results based on normal files,deleted files,lost files,and file size,and support keyword search of scan results.

　　21.Supports saving data from multiple partitions simultaneously,filtering invalid files,and restoring files according to their real file structure.

　　3.Hardware technical parameters

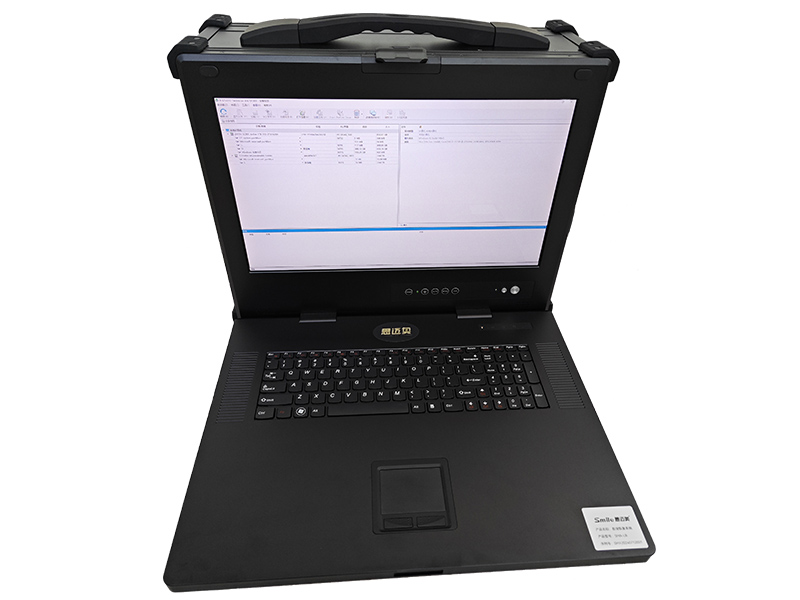

　　1.The equipment is an all-in-one machine,equipped with a high-definition viewing angle screen of 17.3 inches,and a resolution of 1920*1080.

　　2.CPU:I7 11700;Memory(RAM):32GB DDR4;System disk(SSD):480GB;Storage disk:4TB.

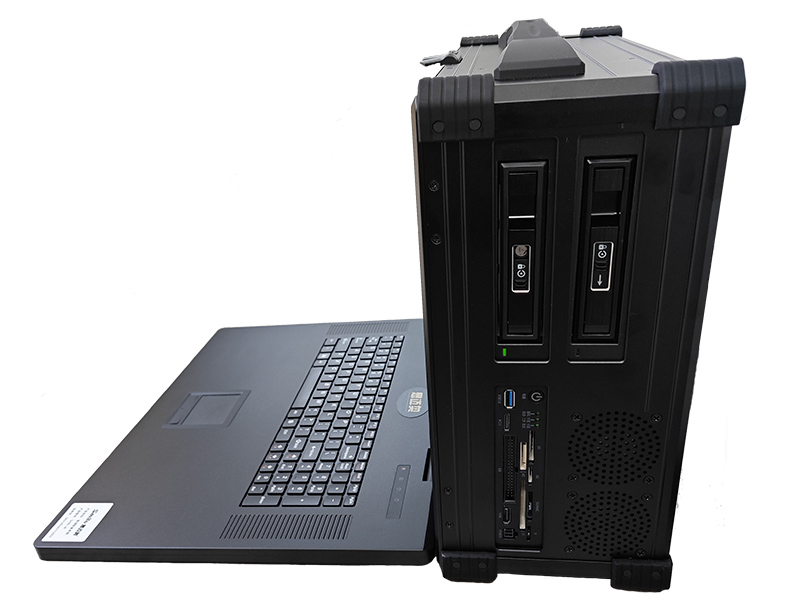

　　3.Hard disk compartment:Built in 2 3.5-inch SAS/SATA hard disk swappable compartments.

　　4.Built in hard disk interfaces such as PCIE/SATA/IDE,as well as multi in one flash card readers(including CF,TF,SD,M2,MMC,MS,xD)interfaces.
