The SMA-CP01 high-speed hard disk copier is a high-tech forensic equipment that is efficient and high-performance.The system adopts multiple hardware based read-only interfaces,which can effectively ensure that data in various storage media is not modified after being connected to the host and during the analysis process,meeting the judicial fairness requirements of electronic evidence data.The system is embedded with several major functional modules such as disk clone replication,mirroring,data fragmentation,hash verification,and online mounting,perfectly meeting the business needs of domestic judicial forensics.

　　Features

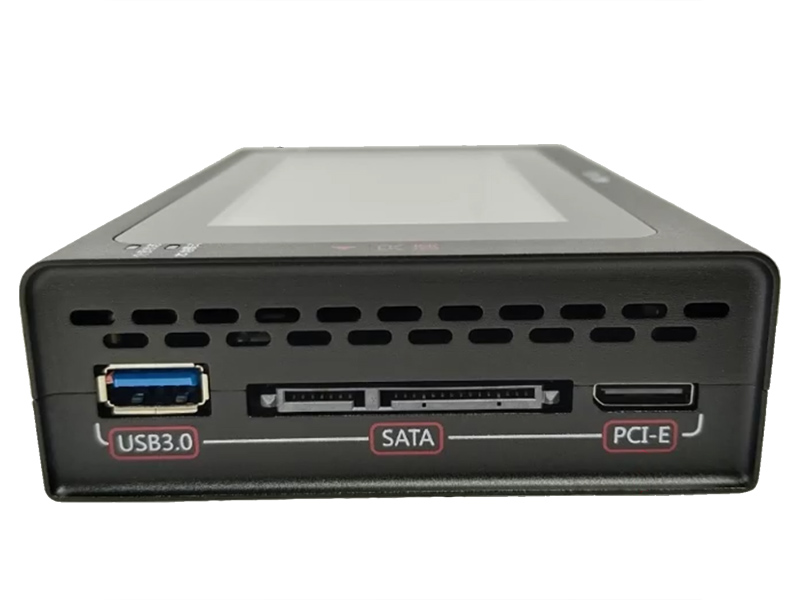

　　1.write protection port:Integrates 1*PCI-E,1*SATA 3.0 and USB3.0 port.

　　2.Read/write port:1*SATA 3.0,one built-in M.2,and 1*USB3.0 port.

　　3.Embedded media clone,image,data crushing,hash check and other function modules,support three groups of task parallel operation.

　　4.Hard disk replication:Supports multi-threaded parallel jobs and performs synchronous hash check.

　　5.Disk image:Supported format:DD,E01,Ex01,etc.

　　6.The maximum end-to-end data transmission speed of a single task is 40GB/Min(M.2-M.2).

　　Specifications

　　1.View hard drive information:Hard drive location,information,HPA/DCO Settings,locked,and SMART information.

　　2.Hard Drive Erase,Format&Erase mode:Once,Custom,Security,DoD formatting options:Ext4,NTFS,exFAT

　　3.Hidden partition:Supports HPA/DCO hidden partition identification and restoration

　　4.Hard disk cloning:Supports multi-threaded parallel operations and synchronous verification:SHA1,SHA256,and MD5

　　5.Hard disk image:Supported format:DD,E01,Ex01,etc.Support multi-threaded parallel jobs,optional synchronous verification:SHA1,SHA256,MD5

　　6.Breakpoint copy:Support(E01 only supports segmentation mode)

　　7.Compute hard drives:hash SHA1,SHA256,MD5

　　8.Hardware acceleration:E01,SHA1

　　9.Log:One log file for each task,which can be viewed and downloaded

　　10.Task management:Tasks can be suspended and terminated
