The SMA-RV04 audio and video life detector is equipped with an infrared thermal imaging intercom probe，a waterproof video probe, a 360 ° electric rotating audio and video probe and a micro video probe,which can work even in dark conditions, quickly searching and rescuing trapped people under ruins. It is mainly used to detect and locate survivors buried in collapsed structures due to earthquakes, explosions, landslides, mining accidents, or building depressions. The host supports functions such as direct storage, one click recording, one click taking photos, and one click zooming in. It also supports photo playback and video browsing, with simple operation and convenient use. The device supports wireless transmission through industrial tablets, remote operation of video recording and photography, effectively improving the efficiency of rescue.
The SMA-RV04 audio and video life detector is equipped with an infrared thermal imaging intercom probe，a waterproof video probe,a 360°electric rotating audio and video probe and a micro video probe,which can work even in dark conditions,quickly searching and rescuing trapped people under ruins.It is mainly used to detect and locate survivors buried in collapsed structures due to earthquakes,explosions,landslides,mining accidents,or building depressions.The host supports functions such as direct storage,one click recording,one click taking photos,and one click zooming in.It also supports photo playback and video browsing,with simple operation and convenient use.The device supports wireless transmission through industrial tablets,remote operation of video recording and photography,effectively improving the efficiency of rescue.
Technical parameter:

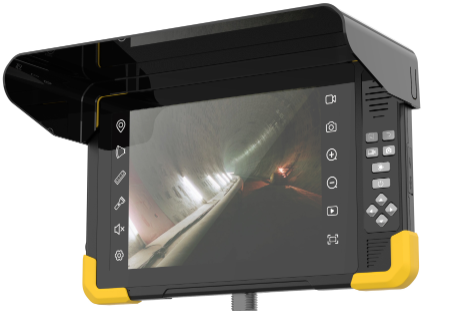

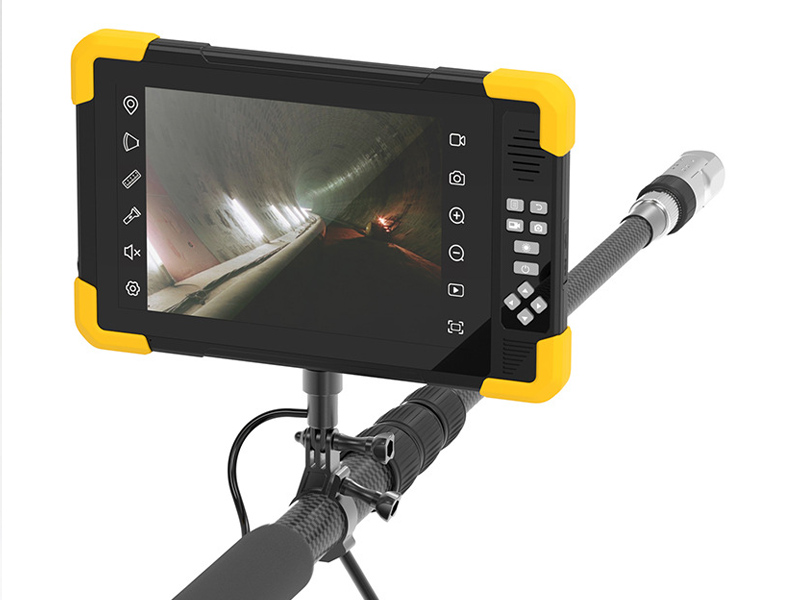

Host
Equipped with physical buttons and touch screen functions,the menu bar supports recording,adjusting screen brightness,mirroring settings,and camera settings;
10 inch display screen,display resolution:1280*800 pix
Supports automatic recognition of camera signals,supports photo settings,with 12 million photo pixels;;
Support WiFi wireless transmission and connect to industrial tablets for remote operation,recording,and taking photos;
Support 10x magnification and reduction of video images;
Equipped with functions such as direct storage,one click recording,one click taking photos,and one click zooming in;
Supports image editing,photo playback,and video browsing,with a built-in 128GB storage card;
Battery working time:10 hours；
Working temperature:-20℃-60℃;Storage temperature:-20-60℃

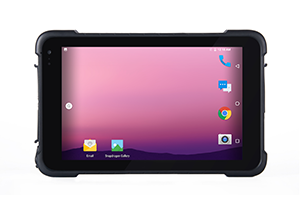

Remote control tablet(optional)
10.1-inch touch screen display,wireless transmission distance up to 100 meters,synchronously displaying the host screen;
Search probe
1)Thermal imaging intercom probe
A rectangular probe with a front side length of 29mm and a flexible hose that can be bent.The probe uses an amorphous silicon infrared detector with a resolution of 256*192,and has a false color display function with 11 false color modes.
The thermal imaging image can be displayed based on the human body temperature.When the detection distance is 100 meters,the thermal imaging contour of the human body can be displayed,and when the detection distance is 200 meters,the thermal imaging spot of the human body can be displayed.
The probe can accurately locate and detect the presence of signs of life by detecting the infrared radiation emitted by survivors under all dark conditions.
The probe is equipped with a high sensitivity speaker and microphone,allowing for real-time two-way voice calls.
2)Waterproof video probe
The probe has a diameter of 39mm and is equipped with 12 LED lights.The brightness level is adjustable at 7 levels,and the night vision distance in dark environments is 6 meters;
The probe can be controlled to rotate horizontally by 360 degrees and vertically by 270 degrees through the host button;
Equipped with a 20 meter waterproof line;
Probe resolution:2560*1944
Protection level:IP68

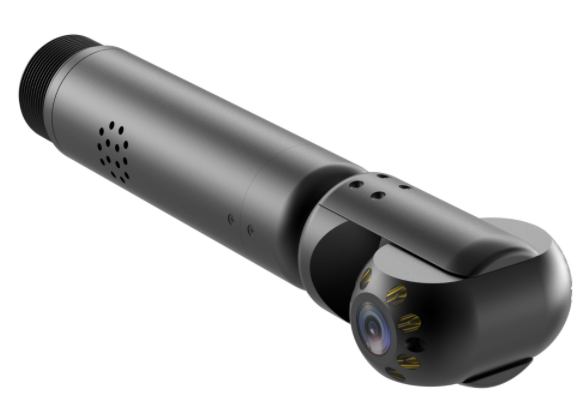

3)360°electric rotating audio and video probe
39mm diameter,5 million high-definition probe(2560*1944),supporting bidirectional voice intercom;
Electric rotation,horizontal 360 degree rotation,vertical 180 degree rotation,
12 LED lights,low illumination,good night vision effect,8-level brightness adjustment;
4)Micro video probe
100W pixels;
8mm diameter;
Equipped with 8 built-in LED white light bulbs,suitable for detecting micro apertures of about 1cm.Equipped with a 3-meter hard shaped spring wire,it has thrust and can be flexibly bent;

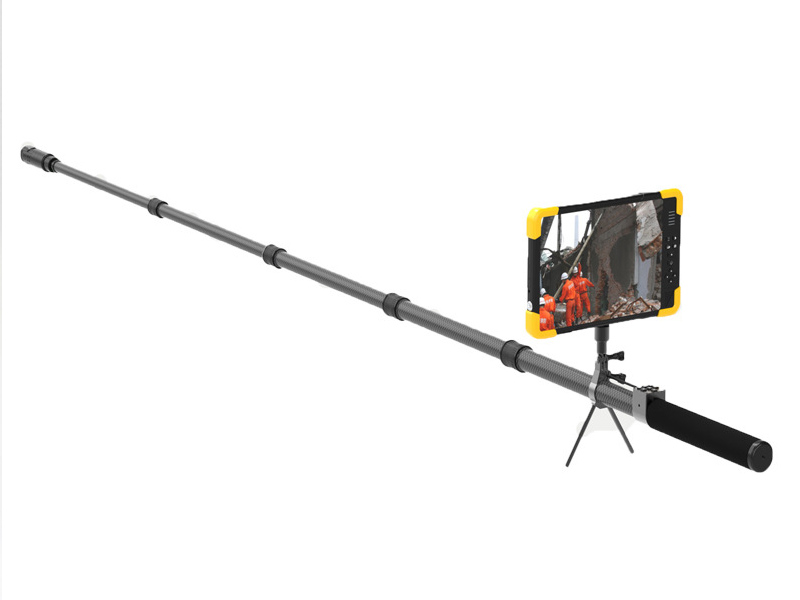

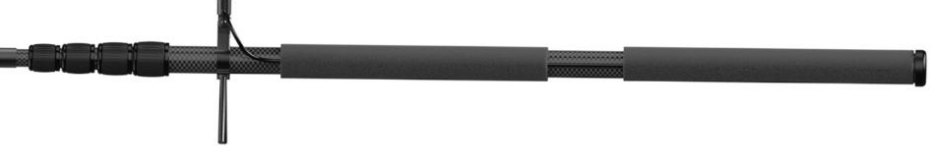

Scalable carbon fiber rod
Equipped with a handheld telescopic rod,with optional lengths:
①3.5 meter telescopic rod:the shortest length after contraction is 1 meter,and the longest length when extended is 3.5 meters;
②5 meter telescopic rod:the shortest length after contraction is 1.3 meters,and the longest length when extended is 5 meters;

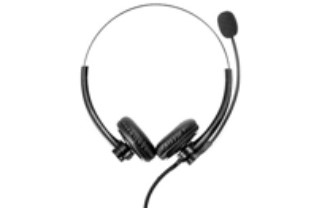

Earphones
Equipped with high-quality earphones,it can listen to the weak voices of victims,and the built-in audio module can talk to survivors

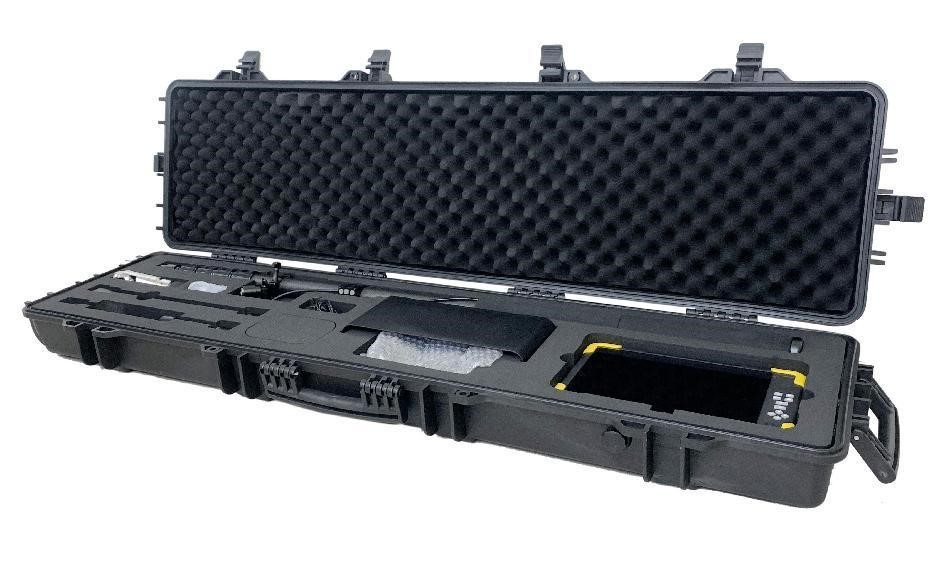

Protective box
Equipped with waterproof,dustproof,and anti drop safety protection box.
