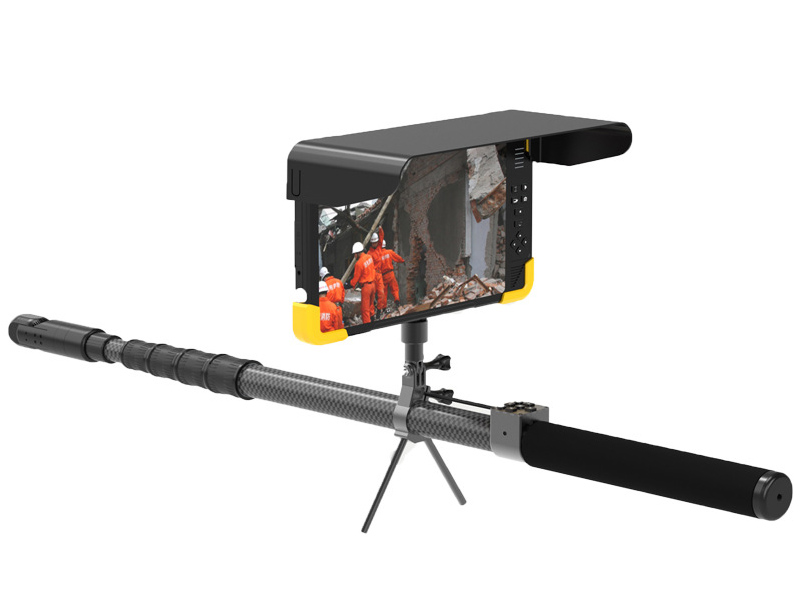

SMA-RV02 Audio & Video Life Detector

The SMA-RV02 audio and video life detector is equipped with an infrared thermal imaging intercom probe and a waterproof video probe, which can work even in dark conditions, quickly searching and rescuing trapped people under ruins. It is mainly used to detect and locate survivors buried in collapsed structures due to earthquakes, explosions, landslides, mining accidents, or building depressions. The host supports functions such as direct storage, one click recording, one click taking photos, and one click zooming in. It also supports photo playback and video browsing, with simple operation and convenient use. The device supports wireless transmission through industrial tablets, remote operation of video recording and photography, effectively improving the efficiency of rescue.
Whatsapp:+86 13534182658

Product Overview

The SMA-RV02 Audio & Video Life Detector is equipped with audio-video communication, infrared thermal imaging, and waterproof probes, allowing it to operate in darkness for quick rescue of trapped individuals in rubble. It is ideal for rescue scenarios such as earthquakes, explosions, landslides, mining accidents, and building collapses.



The main unit features one-touch recording, photo-taking, and zoom functions, with support for photo playback and video browsing, making it easy to use. The device also supports industrial-grade tablet Wi-Fi wireless transmission for remote recording and photo-taking, enhancing rescue efficiency.


Specification

Ø   Host

Display: 10-inch screen (1280×800 px), supporting both physical buttons and touch control.

Functions: Audio recording, screen brightness adjustment, mirror settings, camera settings.

Camera Support: Auto-detects camera signals, with up to 12 megapixels for photo-taking.

Wireless Transmission: Wi-Fi connection to industrial tablets for remote video recording and photo-taking.

Image Control: Supports up to 10x zoom for detailed viewing.

Storage: 128GB built-in, supports image editing, photo playback, and video browsing.

Battery Life: 6-hour continuous operation; optional backup battery (battery life >10 hours).

Environmental Adaptability: Operating temperature -20°C to 60°C, storage temperature -20°C to 60°C.




Ø   Optional Remote Control Tablet

Processor: ARM-based octa-core processor with Android OS for powerful performance.

Display: 10.1-inch high-brightness touchscreen (1280×800 FHD) for clear and detailed visuals.

Network & Positioning: Supports Wi-Fi 2.4GHz/5GHz and 4G multi-network coordination; equipped with GPS+GLONASS for precise navigation.

Camera: 5MP front and 13MP rear cameras for versatile imaging needs.

Durability: Rugged, triple-proof (waterproof, dustproof, shockproof) casing for harsh environments.


Ø   Probe

360° Underwater Rotating Probe

Diameter: 39mm, with 12 high-brightness LEDs, adjustable brightness (7 levels), providing night vision up to 6 meters in darkness.

Control: Main unit controls the probe, allowing horizontal 360° rotation and vertical 270° flipping.

Optional Accessories: 20-meter waterproof cable.

Durability: 304 stainless steel shell for enhanced durability.

Resolution: 2560×1944, 5 megapixels.

Protection: IP68 rating, suitable for underwater operations.


Intercom Thermal Imaging Probe

Configuration: Rectangular probe, 29mm edge length, flexible with a bendable hose.

Infrared Detector: Amorphous silicon with 256×192 resolution, supporting 11 pseudo-color modes.

Thermal Imaging: Displays human thermal contours at 100 meters and thermal spots at 200 meters.

Detection: Accurate life-sign detection through infrared radiation in total darkness.


Handheld Telescoping Carbon Fiber Probe:

Cable LengthsOptional
3.5 meters (1 meter retracted, 3.5 meters extended)
5 meters (1.3 meters retracted, 5 meters extended)

Design Features:
Built-in spring wire, no exposed cables for a cleaner, simpler operation.


Headset:

High-Fidelity Headphones: Provides clear audio quality, lightweight, and comfortable for long wear.

High-Gain Microphone: Amplifies faint sounds to hear distress signals from trapped individuals.


Ø   Protective Case:

Waterproof, dustproof, and shock-resistant for secure equipment storage and transport.
