Product Overview
There are various imaging devices available on the market, such as ultra-wide spectral, ultraviolet, laser, and visual targeting reagents, which are used for the search and discovery of fingerprints, bloodstains, semen stains, and exfoliated cells. However, each device has a single function and cannot uniformly address the discovery of various complex objects, such as walls, dusty glass, dark backgrounds, and latent fingerprint and DNA traces

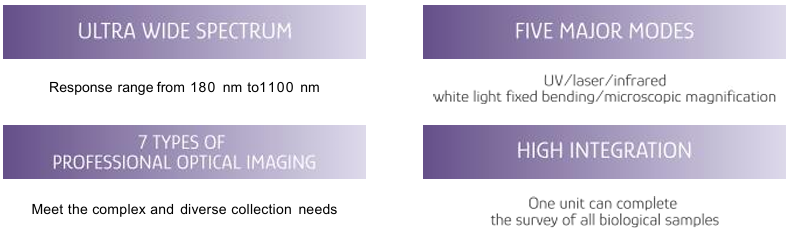

The SMA-QN02 all-in-one Intelligent Crime Scene Investigation Instrument is highly integrated. It uses a scientific-grade ultraviolet chip and an intelligent computing host, and combines intelligent anti-shake and image fusion algorithms. It has built-in multi-band light sources, high-power blue and green lasers, a full-spectrum lens, a white light fixed-refraction device, etc. It has 7 professional optical imaging functions, which can quickly search, photograph, and collect evidence of latent fingerprints, palm prints, trace bloodstains, saliva stains, semen stains, urine stains, bones, and other biological evidence on the surfaces of non-porous, semi-porous, and porous objects. This greatly improves the efficiency of on-site investigation, extraction, and analysis, and can meet the collection requirements of complex and diverse criminal case scenes.
Advantages

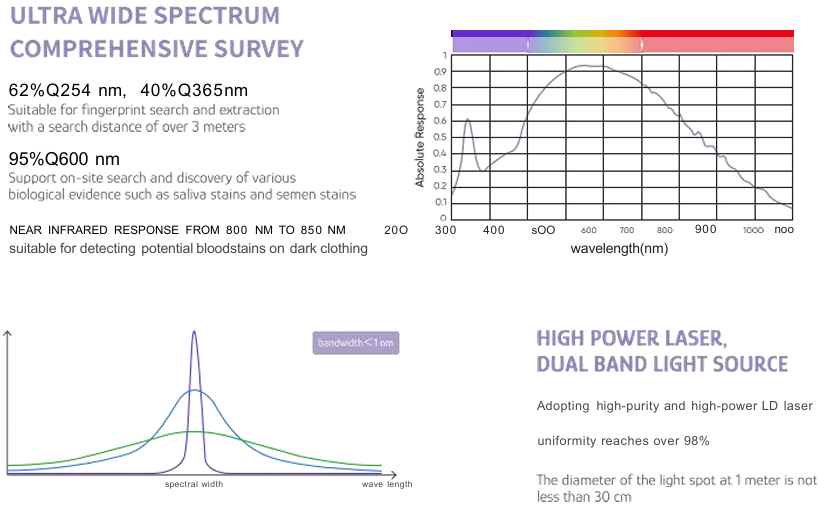

1. Long-distance and large-area fingerprint search and laser positioning function: A 40%@365 nm ultraviolet light source is suitable for fingerprint search and extraction, with a search distance of over 3 meters.
2. Closed - range fingerprint shooting and scale function：The device is equipped with a 254nm closed - range light source, which can take clearer photos of the searched fingerprints. The fingerprint texture can be further enlarged for detailed shooting. At the same time, the 254nm light source is equipped with a scale, eliminating the need for manual scale pasting during on - site fingerprint shooting, simplifying the operation process and facilitating on - site evidence collection.
3. Biological trace search function: High - purity and high - power LD lasers (445nm blue light/520nm green light) are used, with a light uniformity of over 98%. The spot diameter at 1m is not less than 30 cm, which is suitable for the search of various biological evidence such as saliva, semen stains, urine stains, and bones.
4. Directional reflection function: White light is configured for directional reflection, which is suitable for complex background removal during investigation.
5. Exfoliated cell discovery function: The white light search device for exfoliated cells is dedicated to the search and discovery of exfoliated cells.
6. Latent bloodstain search function: An 800nm - 850nm near - infrared light source is suitable for the discovery of latent bloodstains on dark - colored clothing.
7. Difficult object visualization function: A dedicated targeting reagent is configured for visual targeting of difficult objects.
Equipment Features
1. Ultra-high sensitivity

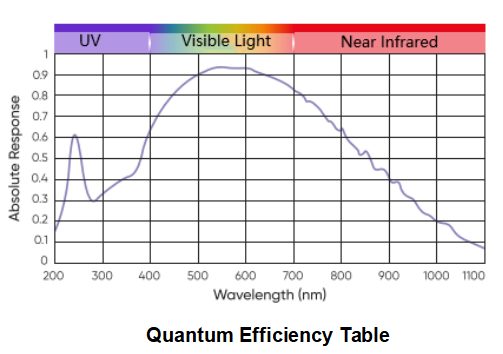

It adopts the world - advanced scientific - grade ultraviolet - enhanced electron multiplication noise reduction technology and full - spectrum ultra - high - definition ultraviolet - enhanced imaging components. The image has no distortion and extremely high clarity. It has extremely high sensitivity in each wavelength band. In the 254nm/365nm ultraviolet region, especially in the full ultraviolet region, the sensitivity can reach over 60%.
2. High-definition output：
It provides real - time high - definition video image output, 2048*2048 4 - megapixel ultra - clear static image output, and uncompressed MP4 format and SSD solid - state drive recording.
3. Image processing software platform：
It is equipped with an advanced and specially developed criminal evidence image processing software, providing an advanced platform for the post - processing of evidence images.
4. Auto - focus function：
The one - key auto - focus function is unique to this product. It enables on - site case - handling staff to more conveniently and quickly search for various traces and record them, greatly improving work efficiency.
5. Humanized design：

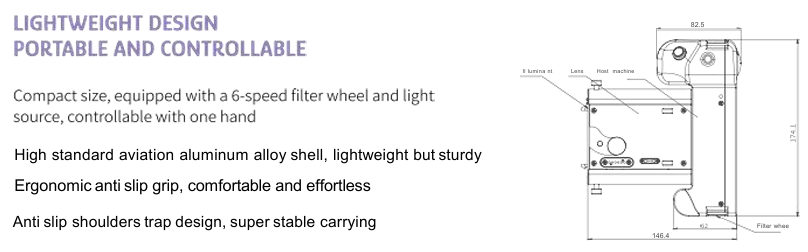

It has a compact size and an integrated and human - friendly design. It integrates a 6 - band filter wheel and light source, which can be controlled with one hand. The high - standard aviation aluminum alloy shell is lightweight but sturdy. It has an ergonomic anti - slip grip, which is comfortable and labor - saving.
Technical Specifications
Imaging Components |
Spectral Response Range | Effective spectral response range: 180nm - 1100nm |
Sensor Size | A high - sensitivity ultraviolet - enhanced scientific - grade CMOS sensor is used, with a single - frame resolution of 2048*2048, an imaging target surface size of 1.2 - inch diagonal, and a pixel size of 6.5 microns |
Image Processing | The recording system host is equipped with an image automatic processing button. According to different recording and imaging object types, it can automatically adjust parameters such as image brightness/contrast/gamma value to achieve real - time image processing |
Video and Image Output | 1080P 32 - frame/second real - time video image output, 2048*2048 4.2 - megapixel real - time single - frame photography |
Criminal Recording Special Filter System, LED Ultraviolet Lamp, Recording Format, and Display |
Ultraviolet Band of Filter | Special ultraviolet filters: UVA (254nm), UVC (365nm)） |
Visible Band of Filter | 480nm，570nm |
Infrared Band of Filter | 850nm |
Ultraviolet Lamp | Integrated design, small size, special short - wave LED ultraviolet lamp |
Recording and Saving Format | Recording format: MP4; Video and image storage: EMCC memory |
Image Saving Format | High - definition recorded images: AVI/RAW format; When taking a single image: RAW, TIF, and PNG formats |
Real-Time image Enhancement Processing | It provides a real - time background interference deduction function when photographing fingerprint evidence |
Display | 5 - inch IPS high - definition, with >= 1280*1024 pixels. Expansion to a large - screen high - definition display can be achieved through Type - C. |
System Online Upgrade | It can be upgraded offline through the USB interface of the device body to intelligently improve system performance |
Power Supply System | Rechargeable lithium - ion batteries with a capacity of 10200mAh (2 pieces are standard). Battery life: 3.5h. When using the laser, the battery life is 1h. |

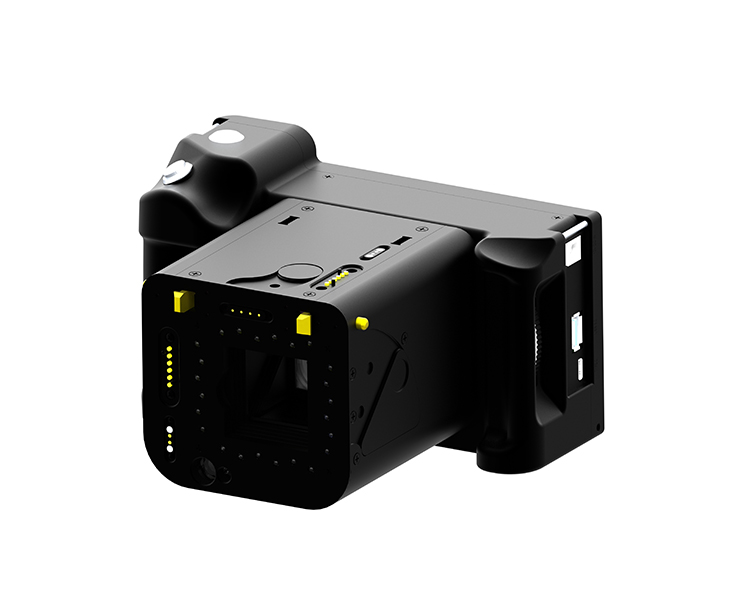

Host Size and Weight | Size: approximately 22.3x6.6x12.2cm; Weight: approximately 1.8kg (including battery, lens, and auto - focus module) |
Packaging Weight and Size | 8.72kg (including the host and all accessories), safety box: 36x25.5x55cm |
System Structure and Composition
Serial Number | Configuration | Quantity | Description |

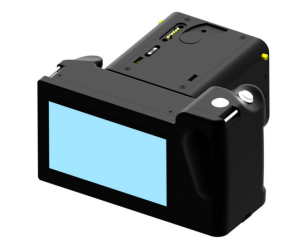

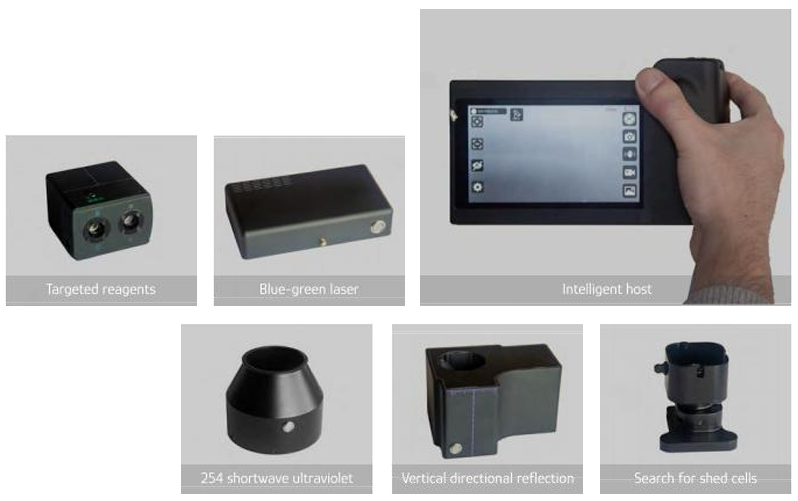

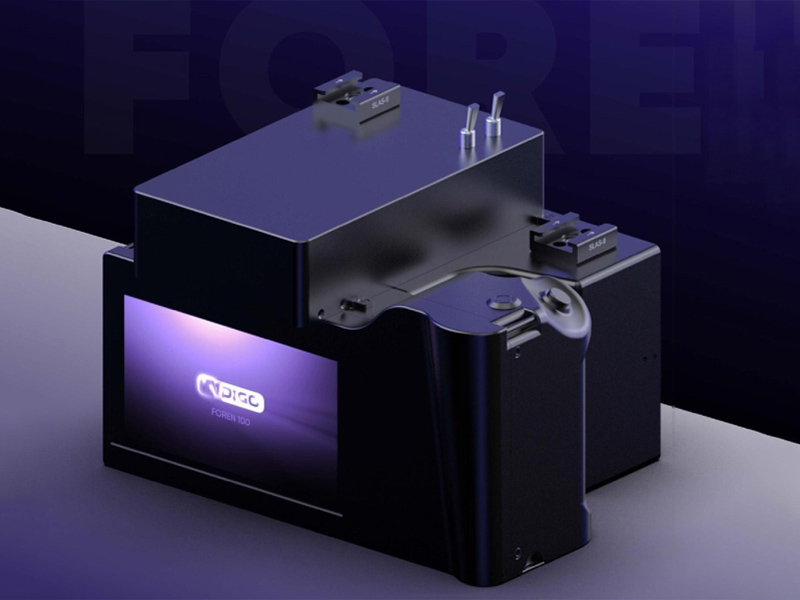

1 | Host | 1 | 5 - inch high - definition screen recording system host |
2 | Fixed - Refraction Module | 1 | Intelligent fingerprint photographing system, with built - in vertical directional reflection and grazing white light. |
3 | Laser Module | 1 | Dual - band: blue laser power is not less than 8W, green laser is not less than 2W |
4 | 254 Module | 1 | 254 short - wave ultraviolet light source |
5 | atomizing module | 1 | Targeted atomizer, with built - in blue - green dual - laser targeting reagent |
6 | Microscopy Module | 1 | 50 - times optical magnification, 6 - times digital magnification, with blue and white light dual - light configuration |
7 | Filter Device | 2 | 1. Blue laser filter; 2. Green laser filter |
8 | Power Adapter | 1 | Specification: 12V 6A |
9 | Type - c Data Cable | 1 | Type - c interface, 0.5m long |
10 | Battery Charger | 1 | Output: DC 8.4V |
11 | Spare Battery | 2 | 7.2V 10200mAh |
12 | Sprayer Charger | 1 | 5V/1A |
13 | Blue and Green Laser Glasses | 1 pair each | Only allow specific wavelengths to pass through |
14 | Blue and Green Laser Reagents (in bottles) | 2 bottles each | 10ml, used in conjunction with the targeted sprayer and blue and green lasers |

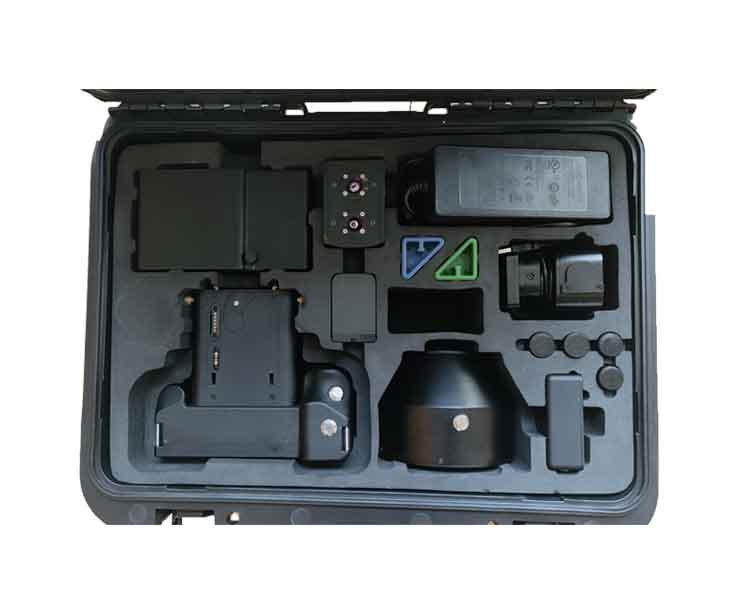

15 | Police - use Pull - rod Box Packaging | 1 | Size：475*363*210mm |

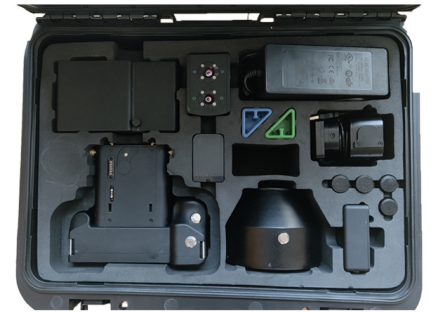

![QEW9AI){Y]__OKT9P9)J`CP.png](/uploadfile/image/20250408/1744093196450681.png "1744093196450681.png")
Investigation Effect Diagram

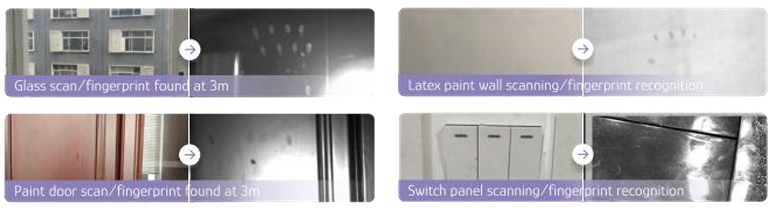

365 ultraviolet wide range long-distance search mode

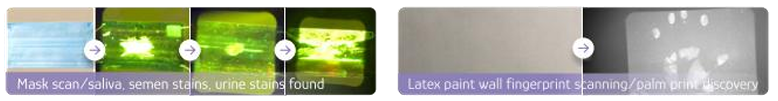

Large scale search of on-site biological evidence found
Visual targeted search discovery

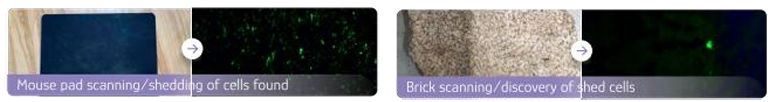

Search for shed cells found

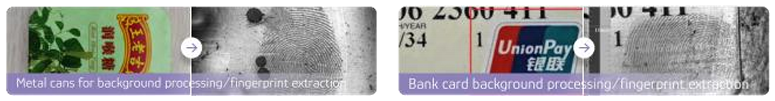

Vertical directional reflection fingerprint extraction

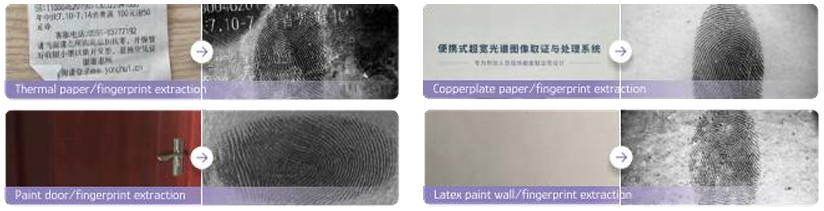

254 shortwave ultraviolet fingerprint extraction

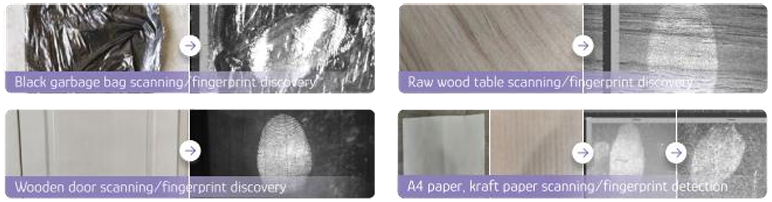

Dust fingerprint extraction
Overlapping fingerprint separation and extraction
Extraction of dark cotton bloodstains
