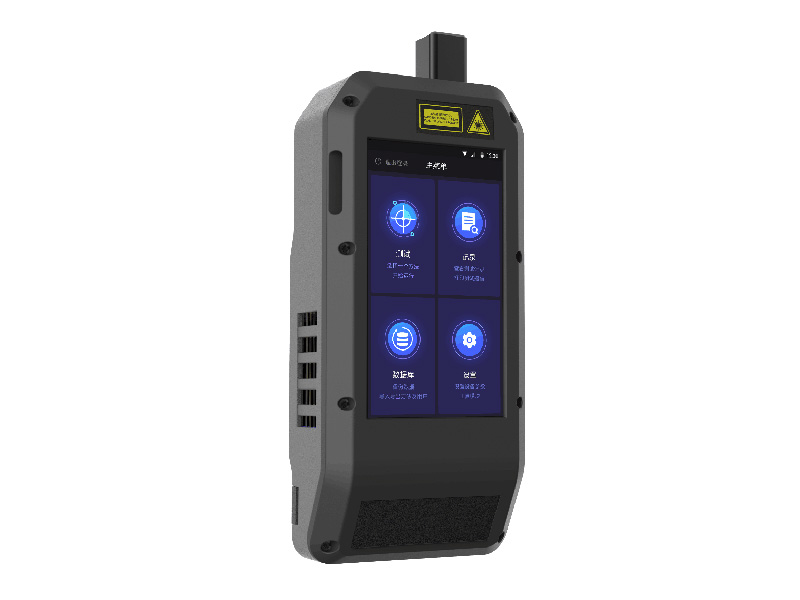

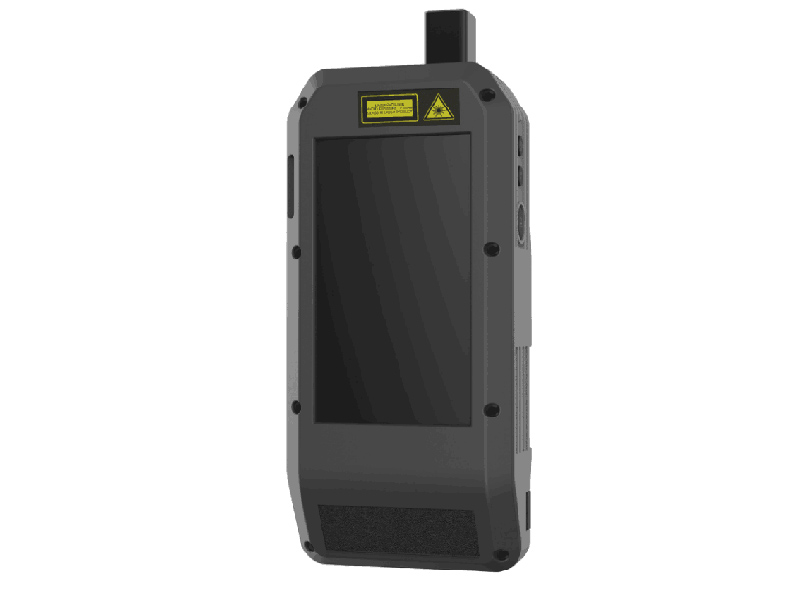

SMA-HW90 Handheld Infrared Raman Spectrometer(1064nm)

The SMA-HW90 is an advanced detection device featuring 1064nm excitation with ultra-high fluorescence suppression, enabling non-destructive substance identification with exceptional accuracy. It is specifically designed for high-fluorescence samples, offering high sensitivity and millisecond-level response time. Detection results are displayed directly on the built-in screen for quick and intuitive reading.
Whatsapp:+86 13534182658

Product Introduction

The SMA-HW90 is an advanced detection device featuring 1064nm excitation with ultra-high fluorescence suppression, enabling non-destructive substance identification with exceptional accuracy. It is specifically designed for high-fluorescence samples, offering high sensitivity and millisecond-level response time. Detection results are displayed directly on the built-in screen for quick and intuitive reading.



The SMA-HW90 is widely used in customs, law enforcement, laboratories, workshops, warehouses, and ports. It provides rapid identification of drugs, precursor chemicals, explosives, gemstones, raw materials, and more. Offering a highly efficient and precise material identification solution, it meets the demands of both security inspection and quality control across various industries.


Key Technologies & Features

Raman Spectroscopy:

Utilizes a 1064nm excitation light source, significantly reducing fluorescence interference and enhancing detection accuracy.

Especially effective for analyzing high-fluorescence samples.

Portable Design:

Lightweight and compact, making it easy to carry and ideal for on-site rapid detection.

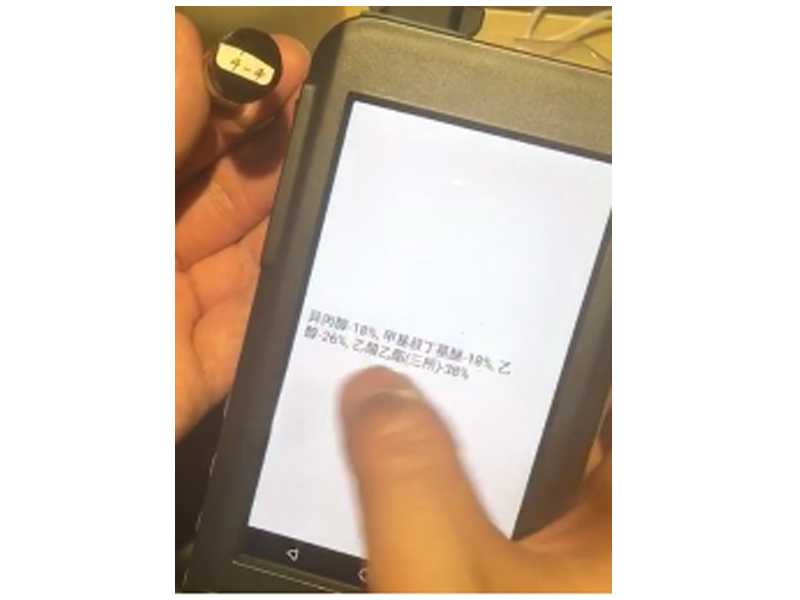

Mixture Identification:

Supports component analysis of up to five mixed substances, providing accurate composition and ratio references for complex sample testing.

Cloud Platform Support:

l  Cloud Database: Dual-encrypted, secure, and stable, continuously updated and freely accessible to all users.

l  Access Control: Strict permission management ensures that private data remains visible only to authorized users.

l  Online Upgrades: The software supports real-time updates, improving stability and functionality over time.

l  Expandable Model Library: Continuously updated with unlimited growth, supporting custom model distribution and wireless synchronization across multiple devices.

l  Data Sharing & Analysis: Test records can be uploaded instantly, allowing real-time remote collaboration, with statistical analysis and detailed reporting of test results.



Specifications

Dimensions: 197 × 90 × 45 mm

Weight: Approx. 800g

Battery Life: >12 hours

Excitation Wavelength: 1064 nm

Laser Power: Adjustable 0–500 mW

Spectral Range: 200–2500 cm⁻¹

Resolution: 8–10 cm⁻¹

Laser Lifespan: 10,000 hours

Sample Size: 1μL or larger

Spot Size: Approx. 200 μm

Working Distance: 0–7.5 mm, continuously adjustable

Operating Temperature: -20 to 60°C

Data Connectivity: WiFi, 4G

Database: >1,000 substances

Photography Function: Supported, 13 MP camera

Software Features: Model matching, report generation, record uploading
