SMA-DB001 portable frequency jammer

The SMA-DB001 portable frequency jammer is equipped with 6 different interference modules and has over ten frequency interference levels. Its maximum output power can reach 120W, and it can implement effective and reliable radio frequency interference technology to effectively counter the threat of remote-controlled bombs. SMA-DB001 is lightweight and reinforced, making it perfect for carrying. Operators can carry it through hills, muddy roads, small peaks, etc., thereby improving combat efficiency.Based on its modular design and configuration, the product is easy to operate, maintain, upgrade, and can be replaced with different jamming frequency bands according to customer requirements.
Whatsapp:+86 13534182658

Product Overview

Remote-controlled improvised explosive devices (RCIEDs) are a serious threat to public safety and counterterrorism efforts. To combat this risk, the SMA-DB001 Portable Frequency Jammer offers an advanced broadband jamming solution with six built-in modules covering over ten frequency bands. With a maximum output power of 120W, it effectively neutralizes remote-controlled bomb threats.



Designed for mobility and durability, the SMA-DB001 excels in challenging terrains like hills, muddy roads, and steep landscapes. Meeting military standards and international quality requirements, it ensures stable performance for bomb disposal teams, special police units, military forces, and counterterrorism agencies. Customization options are available for both military and civilian applications.


Features

High-Power Multi-Band Jamming: Supports multi-band interference with a maximum total RF output power of 120W, effectively countering complex threats.

Modular Design: Enables easy maintenance, repair, and upgrades, extending the device’s lifespan.

Multi-Module Coordination: Supports up to six different jamming modules operating simultaneously, covering a broader frequency range.

Military-Grade Build: Designed to meet military standards, ensuring durability in high-intensity operational environments.

Flexible Power Supply: Compatible with built-in batteries, AC power, and DC power, adapting to various operational scenarios.

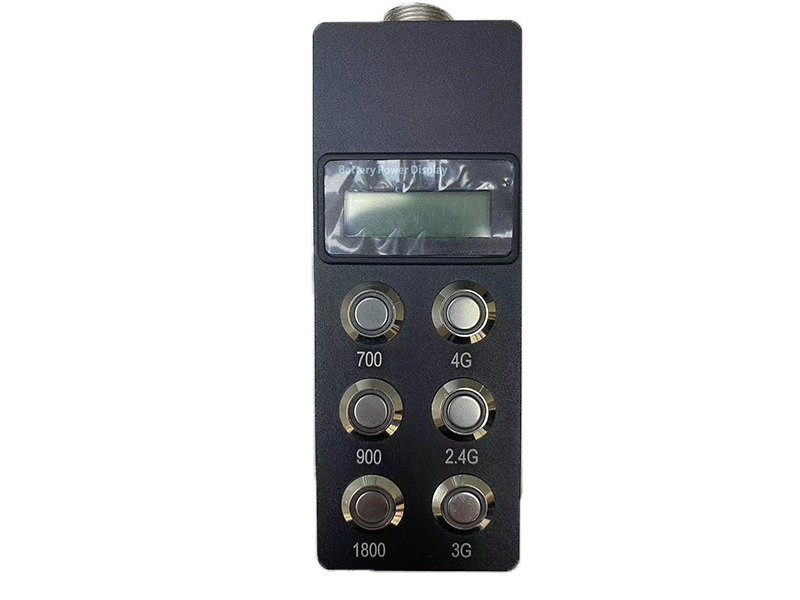

User-Friendly Controls: Equipped with an external handle, individual module control switches, and real-time battery status display, ensuring simple and intuitive operation.

Intelligent Cooling System: Features an advanced cooling mechanism to guarantee long-term stable performance.

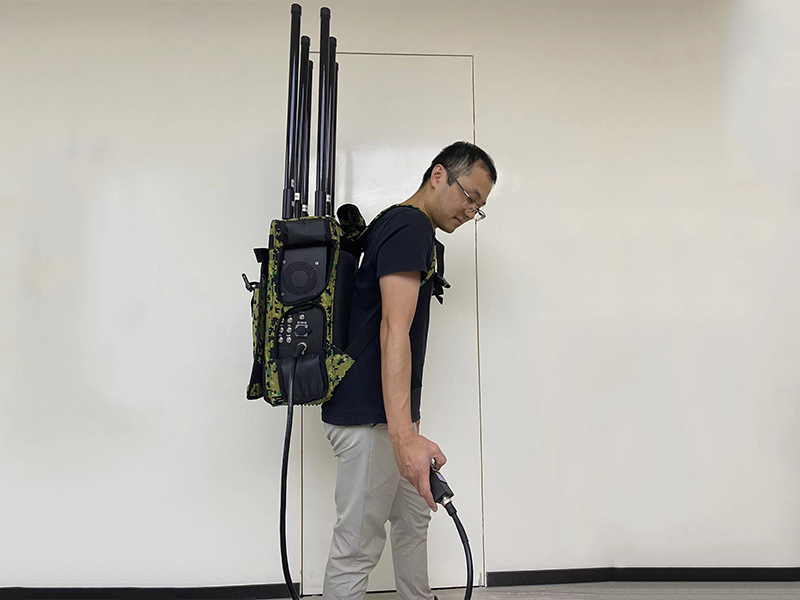

High Portability: Backpack-style design, lightweight and easy to carry, making it ideal for field operations and rugged terrains.


Specification

Frequency Range

700~2500MHz   (customizable according to user needs)

Total RF Power

120Watt

Jammer Module Number

6

Cooling System

Systematic Smart Cooling System

System Protection

VSWR, Over-voltage, Over-current,

Jamming Source

Frequency scanning   technique

Antenna Type

High Gain Omnidirectional Antennas

Number of  Antennas

6

Built in battery

20A

working   temperature

-35°C~+80°C

Working humidity

≤ 80%

Module size

17×7.7×2cm

Net weight of the host

≤18KG
