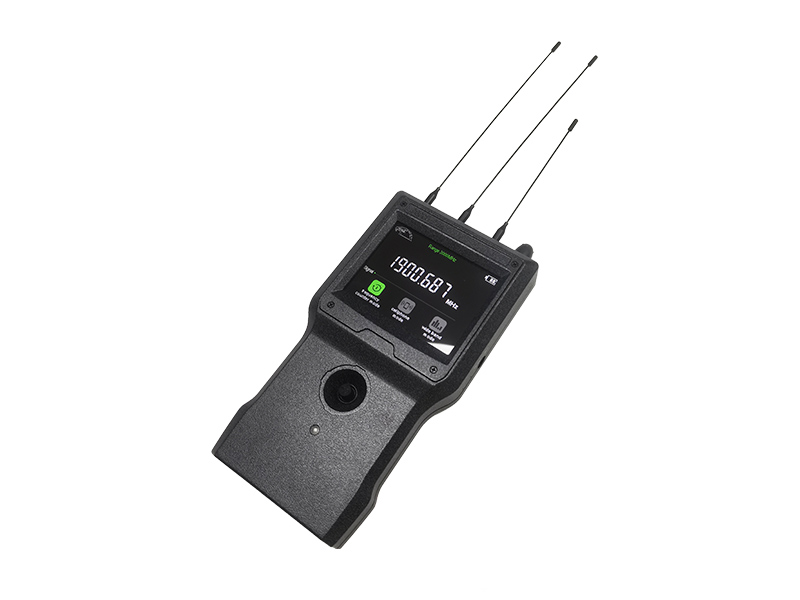

SMA-D8000Plus Wireless Signal Analyzer

The SMA-D8000Plus multifunctional wireless signal analyzer is specifically designed to detect wireless surveillance and recording devices. It can quickly identify all wireless surveillance/recording/eavesdropping products indoors or in the car,no matter how these devices disguise themselves, the SMA-D8000Plus can accurately detect and locate them.
Whatsapp:+86 13534182658

Product introduction:

The SMA-D8000Plus multifunctional wireless signal analyzer is specifically designed to detect wireless surveillance and recording devices. It can quickly identify all wireless surveillance/recording/eavesdropping products indoors or in the car, no matter how disguised such devices are, the SMA-D8000Plus can accurately detect and locate them.

This product integrates three testing modes: digital frequency counting, mobile signal detection, and broadband. The detection mode can be easily switched through a multifunctional switch button. Its digital frequency counting mode can detect the frequency of any digital, switch, analog signal, such as wireless remote controllers, digital radios, walkie talkies, and other devices. The mobile signal detection mode can detect five frequency bands: 2G, 3G, 4G, WIFI, and Bluetooth; It can be used to search for illegally used mobile phones in offices, examination rooms, hospitals, or prisons, and can also be used to detect signals generated by next-generation wireless, Bluetooth, or video devices. The broadband mode has a detection frequency range of up to 8GHz, used to detect various wireless RF devices. SMA-D8000Plus is a powerful and comprehensive professional wireless signal detection device.

Advantages

Multiband Wireless Detection and logging of all types of RF signals

Integrate three RF detection modules

        ① Mobile signal detection module, including full standard 2G/3G/4G mobile signal and WiFi/Bluetooth frequency band (2.4 GHz);

        ② Digital frequency counter module, which is divided into two frequency band ranges, namely 10MHz~500MHz and 500MHz~3GHz;

        ③ 10MHz~8GHz broadband detection module;

Detects all types of RF devices: Audio and Video Bugs, Mobile Phones, Smartphones, GPS Trackers, GSM Bugs, 3G/4G Video, Bluetooth & Wifi Devices, Burst and ‘Store & Forward’ devices .

Cellular bands detect 800 MHz (4G), 900 MHz (2G/4G), 1800 MHz (2G/4G), 2100 MHz (3G), 2600MHz (4G),support customization

Equipped with 3 antennas: corresponding to 3 modes. From left to right are digital frequency counter antenna, broadband antenna, and mobile phone signal antenna, respectively;

Four signal alarm methods are available: sound (emitting a "beep" sound), vibration, LED lights, and mute;

The mobile signal detection mode can be divided into three sensitivity adjustment levels: high, medium, and low, to adjust the signal reception intensity;

Signal bar display allows users to monitor signal strength;

3.5 inch LCD display screen, simple menu operation interface;


Specification:

General parameter

1. Charger: 9V DC

2. Power supply battery: 7.4V built-in rechargeable lithium battery

3. Battery life : After being fully charged, it can work for 1-2 hours

4. Charging time :2 hous

5. working temperature :-15~+50℃

6. Host size:  20cm × 10cm × 3cm

7. Host weight: 0.47kg

8. Outer box size : 29cm × 23cm × 10cm

9. Packaging weight: 1.3kg



Digital frequency counting mode

1. Resolution ratio10KHz (digital signal) ; 1KHz (analog signal)

2. Impedance50ΩMCX connector

3. Detection sensitivity-35dBm

4. Maximum Input15 dBm

5. Detectable frequency range 110MHz~500MHz

6. Detectable frequency range 2500MHz~3000MHz



Mobile signal detection mode

1. Detectable frequency band 1: WCDMA2000MHz

2. Detectable frequency band 2: GSM900/1800MHz

3. Detectable frequency band 3: LTE2600MHz

4. Detectable frequency band 4: LTE800MHz

5. Detectable frequency band 5: 2400MHz

6. Impedance: 50ΩMCX connector



Broadband mode

1. Detectable frequency range: 10MHz~8000MHz8GHz

2. Detection sensitivity: -65dBm

3. Alarm method: Audible alarm or mute


  Technical parameter:

General parameter

Charger

9V DC

Power supply battery

7.4V built-in rechargeable lithium battery

Battery life

After being fully charged, it can work for 1-2   hours

Charging time

2 hous

working temperature

-15~+50℃

Host size

20cm × 10cm × 3cm

Host weight

0.47kg

Outer box size

29cm × 23cm × 10cm

Packaging weight

1.3kg
