Product Overview

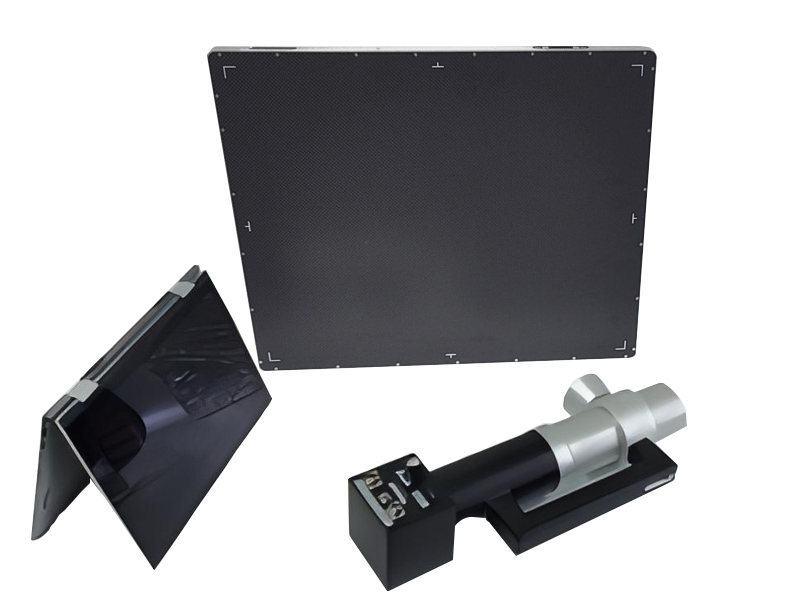

The SMA-A9 is a portable X-ray inspection device designed for rapid on-site deployment. It utilizes advanced ultra-thin amorphous silicon flat-panel imaging technology and is equipped with a professional-grade pulsed X-ray source, ensuring clear imaging and radiation safety. The control system is integrated into a lightweight laptop, making it easy to carry and operate.

This device is primarily used for the efficient detection of controlled knives, drugs, hazardous materials, and explosives. It features powerful image enhancement and intelligent analysis capabilities. Its intuitive and user-friendly software interface simplifies operation.

Widely used in public security, special police, firefighting, and military applications, the SMA-A9 is an ideal choice for security inspections and explosive ordnance disposal (EOD) tasks in the field.

Application

Public Security Sector:

l  Security Screening & EOD: Assists law enforcement and military personnel in quickly scanning suspicious objects (e.g., firearms, drugs) and identifying hazardous materials (e.g., explosives, explosive devices), enhancing efficiency and reducing risks.

l  Forensic Examination: Helps forensic experts locate foreign objects (e.g., shrapnel, blades) inside bodies, aiding in evidence collection and analysis.

Security Inspection Sector:

l  Protective Screening: Used in airports, train stations, and other public places for rapid screening of luggage and packages for contraband.

l  Customs Inspection: Assists customs officers in examining inbound and outbound goods and luggage to combat smuggling.

l  Postal Security Screening: Ensures the safety of mail and courier packages, preventing the circulation of hazardous materials.

Specifications

System Design:

Highly integrated, all-in-one operational platform, portable and durable

Equipped with a high-quality laptop, supporting Windows 7 and later operating systems

Supports both wireless WiFi and Gigabit Ethernet for image transmission

Includes a 30m control/signal cable reel, built-in WiFi module, and wireless digital signal transmission module

Dual power supply (AC/DC), with a built-in rechargeable lithium battery providing over 8 hours of independent operation

Storage temperature/humidity: -15℃ to +55℃ / 10% to 90% RH (non-condensing)

Imaging Performance:

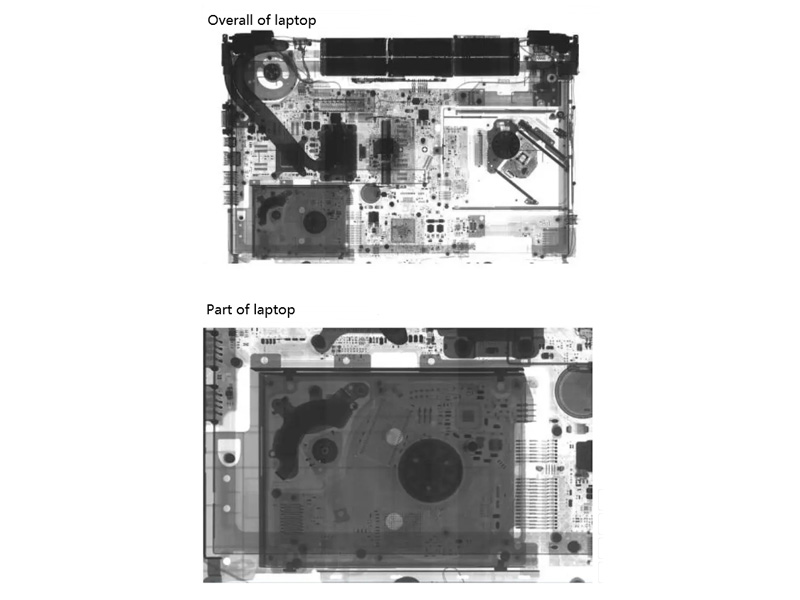

High-definition imaging with a spatial resolution of 3.6 lp/mm and a line resolution of ≤0.03mm diameter copper wire

Pixel matrix: ≥2560 × 3072

X-ray Source:

Operation Mode: Continuous constant current

Power Supply: 220V 50Hz AC or built-in rechargeable lithium battery

Optimal Detection Distance: 0.7m

X-ray Energy: ≥80 keV

Weight: 2.3kg

Imaging Panel:

Size: ≥430mm × 350mm

Thickness: ≤15mm

Detector Weight: 3.3kg
